Fixed-Bottom Substructure Installation Models in ORBIT#
This guide walks through the use of three separate substructure and turbine installation methods
listed below. All configuration files for this guide can be found in the
examples/configs/
folder.
Separate monopile and turbine installation using a heavy lift vessel (HLV) for the monopiles and wind turbine installation vessel (WTIV) for the turbines.
Onshore assembly of the gravity-based foundation (GBF) and turbine, tow out and joint installation at site.
Tow-out of the GBF and turbine installation using the WTIV.
First, we'll import the required libraries and functionality, and initialize any common variables.
import copy
from pprint import pprint
from pathlib import Path
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker
from ORBIT import ProjectManager, load_config
# Apply thousands separators and no decimals to floats
pd.options.display.float_format = '{:,.0f}'.format
# Set the example path for use in the docs and standalone examples usage
here = Path(".").resolve()
match here.stem:
case "examples":
example_path = here
case "topical_guides":
example_path = here.parents[1] / "examples"
case "ORBIT":
example_path = here / "examples"
case _:
msg = "Please manually change `example_path` if running in a custom location."
raise FileNotFoundError(msg)
weather = pd.read_csv(
example_path / "data/example_weather.csv", parse_dates=["datetime"]
).set_index("datetime")
UserWarning: /tmp/ipykernel_2541/691410628.py:28
Could not infer format, so each element will be parsed individually, falling back to `dateutil`. To ensure parsing is consistent and as-expected, please specify a format.
Load The Configurations#
Each of cases 1 and 2 have their own configuration file, however the third case is highly similar to Case 2, so we will make a distinct copy of it, and add the turbine installation phase to indicate the separate substructure and turbine installations.
case1_config = load_config(example_path / "configs/example_separate_monopile_turbine_vessel.yaml")
case2_config = load_config(example_path / "configs/example_gravity_based_project.yaml")
case3_config = copy.deepcopy(case2_config)
case3_config["wtiv"] = "example_wtiv"
case3_config["install_phases"]["TurbineInstallation"] = 0
The primary differences between these projects deal with the installation strategies, and required design stages to support them. Below, we note these differences, but highlighting the installation phases that will be modeled.
Note that the TurbineInstallation model is only required for projects involving a WTIV (Case 1
and 2). The GravityBasedInstallation model offers flexibility so that if a WTIV is not specified
in the configuration file, then it models the tow-out of a fully assembled substructure and turbine;
and, if a WTIV is present, it models the tow-out of the substructure alone with discrete GBF
and turbine installation phases.
print(f"Monopile and Turbine Installation (Heavy Lift Vessel for Monopile Installation, WTIV for Turbine Installation)")
print(f"Install phases: {list(case1_config['install_phases'].keys())}\n")
print(f"Gravity-Based Foundation Installation (Substructure-Turbine Assembly Tow-out, no WTIV)")
print(f"Install phases: {list(case2_config['install_phases'].keys())}\n")
print(f"Gravity-Based Foundation and Turbine Installation (Substructure Tow-out, WTIV for Turbine Installation)")
print(f"Install phases: {list(case3_config['install_phases'].keys())}\n")
Monopile and Turbine Installation (Heavy Lift Vessel for Monopile Installation, WTIV for Turbine Installation)
Install phases: ['ArrayCableInstallation', 'ExportCableInstallation', 'TurbineInstallation', 'OffshoreSubstationInstallation', 'ScourProtectionInstallation', 'MonopileInstallation']
Gravity-Based Foundation Installation (Substructure-Turbine Assembly Tow-out, no WTIV)
Install phases: ['ArrayCableInstallation', 'ExportCableInstallation', 'GravityBasedInstallation', 'OffshoreSubstationInstallation']
Gravity-Based Foundation and Turbine Installation (Substructure Tow-out, WTIV for Turbine Installation)
Install phases: ['ArrayCableInstallation', 'ExportCableInstallation', 'GravityBasedInstallation', 'OffshoreSubstationInstallation', 'TurbineInstallation']
Run The Three Cases#
This project is always being modeled with the example weather project supplied that is representative of US East Coast wind farm locations.
case1_project = ProjectManager(case1_config, weather=weather)
case1_project.run()
case2_project = ProjectManager(case2_config, weather=weather)
case2_project.run()
case3_project = ProjectManager(case3_config, weather=weather)
case3_project.run()
ORBIT library intialized at '/opt/hostedtoolcache/Python/3.13.13/x64/lib/python3.13/site-packages/library'
Results Comparison#
CapEx Breakdown#
# The breakdown of project costs by module is available at 'capex_breakdown'
df = pd.DataFrame({
'Monopiles + WTIV': pd.Series(case1_project.capex_breakdown),
'GBF-Turbine Assembly Tow-out': case2_project.capex_breakdown,
'GBF Tow-out + WTIV': pd.Series(case3_project.capex_breakdown)
}).fillna(0)
df.loc['Total'] = df.sum()
df.index.name = "CapEx Component"
df
| Monopiles + WTIV | GBF-Turbine Assembly Tow-out | GBF Tow-out + WTIV | |
|---|---|---|---|
| CapEx Component | |||
| Array System | 61,594,993 | 61,594,993 | 61,594,993 |
| Array System Installation | 58,448,335 | 58,448,335 | 58,448,335 |
| Export System | 358,235,289 | 358,235,289 | 358,235,289 |
| Export System Installation | 24,499,859 | 24,499,859 | 24,499,859 |
| Offshore Substation | 307,307,330 | 307,307,330 | 307,307,330 |
| Offshore Substation Installation | 5,095,600 | 5,095,600 | 5,095,600 |
| Onshore Substation | 0 | 0 | 0 |
| Project | 355,000,000 | 355,000,000 | 355,000,000 |
| Scour Protection | 6,618,000 | 0 | 0 |
| Scour Protection Installation | 14,748,989 | 0 | 0 |
| Soft | 743,889,072 | 605,889,505 | 664,148,782 |
| Substructure | 554,716,392 | 285,000,000 | 285,000,000 |
| Substructure Installation | 53,356,403 | 53,289,847 | 36,496,243 |
| Turbine | 1,275,000,000 | 1,275,000,000 | 1,275,000,000 |
| Turbine Installation | 95,293,403 | 0 | 95,293,403 |
| Total | 3,913,803,667 | 3,389,360,759 | 3,526,119,835 |
def plot_capex_comparison(df, num_turbines, project_capacity_mw, top_limit=4000):
# Reformat the data for easier plotting
ix_order = ["Monopiles + WTIV", "GBF-Turbine Assembly Tow-out", "GBF Tow-out + WTIV"]
df = df.copy()
df.columns = df.columns.str.strip()
df /= 1e6
df = df.drop("Total").T.loc[ix_order]
capacity_kw = project_capacity_mw * 1000
# Colors for components
colors = plt.get_cmap("tab20").colors
component_order = df.columns.tolist()
color_map = {component: colors[i % len(colors)] for i, component in enumerate(component_order)}
fig = plt.figure(figsize=(14, 14))
ax = fig.add_subplot(111)
bar_width = 0.7 # Slightly thinner bars
bottoms = np.zeros(len(df))
for component in component_order:
vals = df[component].values
bars = ax.bar(
df.index,
vals,
bottom=bottoms,
width=bar_width,
color=color_map[component],
edgecolor="black",
linewidth=0.8,
label=component
)
bottoms += vals
# Add text inside each stacked segment if $/kW >= 40
for i, val_musd in enumerate(vals):
if val_musd == 0:
continue
val_usd = val_musd * 1e6
val_per_kw = val_usd / capacity_kw
val_per_wtg_musd = val_musd / num_turbines
if val_per_kw >= 40:
y_pos = bars[i].get_y() + bars[i].get_height() / 2
text = (
f"${val_musd:,.1f}M | "
f"${val_per_kw:,.0f}/kW | "
f"${val_per_wtg_musd:,.2f}M/WTG"
)
ax.text(
i,
y_pos,
text,
ha="center",
va="center",
fontsize=8,
color="black"
)
# Add total values text on top of bars
total_musd = df.sum(axis=1)
for i, total in enumerate(total_musd):
total_usd = total * 1e6
total_per_kw = total_usd / capacity_kw
total_per_wtg_musd = total / num_turbines
text = (
f"Total:\n"
f"${total:,.1f}M | "
f"${total_per_kw:,.0f}/kW | "
f"${total_per_wtg_musd:,.2f}M/WTG"
)
ax.text(
i,
total * 1.005,
text,
ha="center",
va="bottom",
fontsize=9,
color="black",
fontweight="bold"
)
# Format y-axis ticks with commas
ax.yaxis.set_major_formatter(ticker.StrMethodFormatter("{x:,.0f}"))
ax.set_ylabel("CapEx ($ Millions)", fontweight="bold")
ax.set_xlabel("Installation Strategy", fontweight="bold")
ax.set_title("CapEx Breakdown by Component")
ax.set_ylim(0, top_limit)
ax.grid(axis="y", linestyle="--", alpha=0.7)
ax.legend(title="CapEx Component", ncols=5, loc="upper center")
fig.tight_layout()

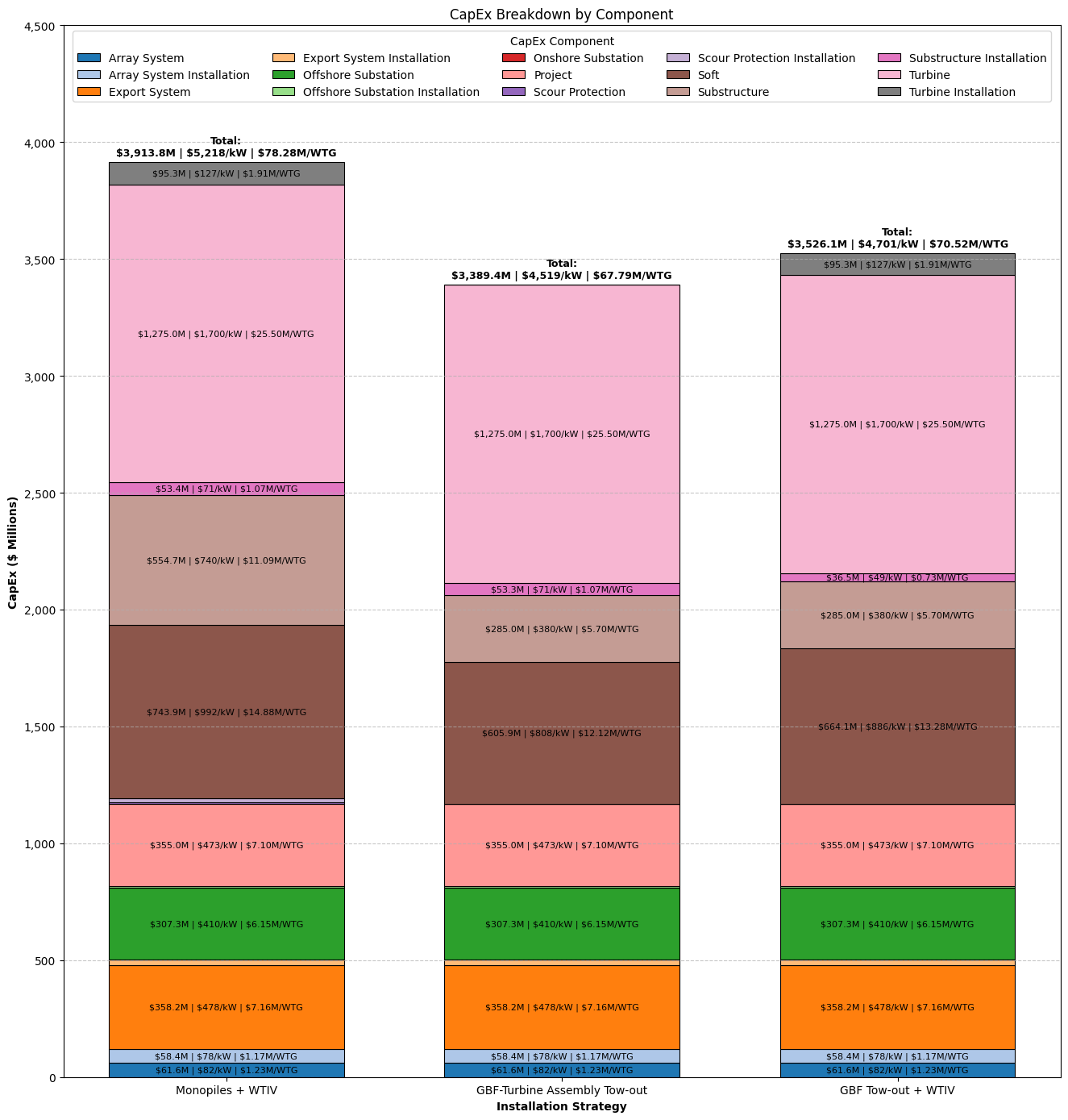

plot_capex_comparison(df, 50, 750, top_limit=4500)
Substructure and Turbine Installation CapEx Breakdown#
sub_turb_install_df = df.loc[["Substructure Installation", "Turbine Installation"]]
sub_turb_install_df.loc["Total"] = sub_turb_install_df.sum(axis=0)
sub_turb_install_df
| Monopiles + WTIV | GBF-Turbine Assembly Tow-out | GBF Tow-out + WTIV | |
|---|---|---|---|
| CapEx Component | |||
| Substructure Installation | 53,356,403 | 53,289,847 | 36,496,243 |
| Turbine Installation | 95,293,403 | 0 | 95,293,403 |
| Total | 148,649,807 | 53,289,847 | 131,789,647 |

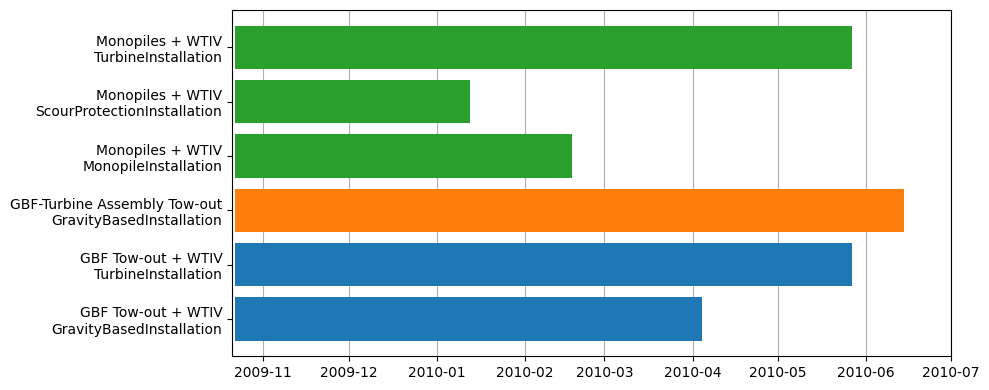

Comparing Installation Timing#
Now we can compare the actual installation phase timing to demonstrate the effects of using differing numbers of vessels and installation strategies. Notice that for both Case 1 and 3 the installations all start at the same date, which is likely unrealistic in practice as each stage cannot happen at a single turbine at the same time, nor can the installation of scouring protection be installed prior to the monopiles being installed.
fig = plt.figure(figsize=(10, 4))
ax = fig.add_subplot(111)
cases = ["Monopiles + WTIV", "GBF-Turbine Assembly Tow-out", "GBF Tow-out + WTIV"]
case1_df = pd.DataFrame.from_dict(case1_project.phase_dates).T
case1_df = case1_df.loc[["MonopileInstallation", "ScourProtectionInstallation", "TurbineInstallation"]]
case1_df.start = pd.to_datetime(case1_df.start)
case1_df.end = pd.to_datetime(case1_df.end)
case1_df = case1_df.rename(index={ix: f"{cases[0]}\n{ix}" for ix in case1_df.index})
case2_df = pd.DataFrame.from_dict(case2_project.phase_dates).T
case2_df = case2_df.loc[["GravityBasedInstallation"]]
case2_df.start = pd.to_datetime(case2_df.start)
case2_df.end = pd.to_datetime(case2_df.end)
case2_df = case2_df.rename(index={ix: f"{cases[1]}\n{ix}" for ix in case2_df.index})
case3_df = pd.DataFrame.from_dict(case3_project.phase_dates).T
case3_df = case3_df.loc[["GravityBasedInstallation", "TurbineInstallation"]]
case3_df.start = pd.to_datetime(case3_df.start)
case3_df.end = pd.to_datetime(case3_df.end)
case3_df = case3_df.rename(index={ix: f"{cases[2]}\n{ix}" for ix in case3_df.index})
ax.barh(y=case3_df.index, width=case3_df.end - case3_df.start, left=case3_df.start);
ax.barh(y=case2_df.index, width=case2_df.end - case2_df.start, left=case2_df.start);
ax.barh(y=case1_df.index, width=case1_df.end - case1_df.start, left=case1_df.start);
ax.grid(axis="x")
ax.set_axisbelow(True)
ax.set_xlim(pd.to_datetime("2009-10-21"), pd.to_datetime("2010-07"))
fig.tight_layout()
